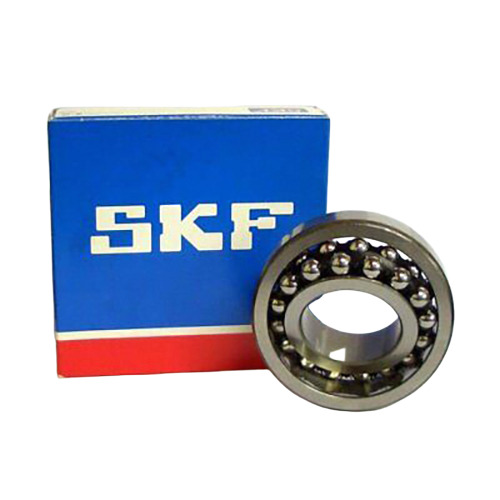

Self Aligning Ball Bearing

150.0 INR/Piece

Get a Price/Quote

Product Details:

Thickness 14 mm
Weight 0.14 kg
Material Chrome Steel
Ball Bearing Type Self Aligning Ball Bearing
Structure Double Row
Seals Type Open / Rubber Sealed
Number Of Rows 2
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Self Aligning Ball Bearing Price And Quantity

Price 150.0 INR/Piece
Minimum Order Quantity 1000 Piece

Packaging Type Box
Application Textile Machines, Mining, Conveyors, Agricultural Machinery
Misalignment Capability Up to 3°
Radial Clearance C3
Accuracy Rating P0, P6
Finish Type Precision Ground
Lubrication Type Greased / Oil Mist
Operating Temperature Range -30°C to 120°C
Cage Material Pressed Steel

Self Aligning Ball Bearing Product Specifications

Limiting Speed 14000 RPM
Thickness 14 mm
Structure Double Row
Number Of Rows 2
Load Capacity Dynamic: 17 kN, Static: 4.15 kN
Outside Diameter 47 mm
Material Chrome Steel
Seals Type Open / Rubber Sealed
Ball Bearing Type Self Aligning Ball Bearing
Bore Size 20 mm
Weight 0.14 kg
Inner Diameter 20 mm

Packaging Type Box
Application Textile Machines, Mining, Conveyors, Agricultural Machinery
Misalignment Capability Up to 3°
Radial Clearance C3
Accuracy Rating P0, P6
Finish Type Precision Ground
Lubrication Type Greased / Oil Mist
Operating Temperature Range -30°C to 120°C
Cage Material Pressed Steel

Self Aligning Ball Bearing Trade Information

Supply Ability 100 Piece Per Day
Delivery Time 1 Week

Product Description

Self Aligning Ball Bearing

Product Details

Brand	All Brands
Type of Bearing	Self Aligning Ball Bearing
Bearing Number	2203, 2312
Weight	200gm
Size	10mm Onwards
Dimension	10mm Onwards
Usage/Application	Machinary
Bearing Series	2200, 2300

Robust Performance Across Industries

Designed for versatility, this self aligning ball bearing with pressed steel cage excels in textile, mining, conveyors, and agricultural machinery. Its double-row structure ensures stability, while the chrome steel material delivers resilience against heavy loads and misalignment. Whether the application is high-speed or rugged, the bearings precision finish and options for sealing enable dependable, long-lasting operation.

Engineered for Reliability and Precision

Benefit from accuracy ratings of P0 and P6, radial clearance of C3, and a precision ground finish. With misalignment capability up to 3, this bearing offers smooth performance even under alignment deviations. The robust pressed steel cage and advanced lubrication options provide superior reliability in fluctuating environments, ensuring minimal maintenance and extended service life.

FAQs of Self Aligning Ball Bearing:

Q: How does the self aligning ball bearing handle misalignment in machinery?

A: This bearing features a double-row design allowing it to tolerate misalignment up to 3, making it especially valuable for applications like conveyors and agricultural machinery where shaft deflection can occur.

Q: What are the advantages of using a pressed steel cage in this bearing?

A: The pressed steel cage offers improved strength and resistance to wear, ensuring the balls are securely retained during high-speed operation, which is critical for textile and mining applications.

Q: Where is this ball bearing commonly used in India?

A: It is widely distributed and used across textile plants, mining operations, conveyor assembly lines, and agricultural equipment by suppliers, service providers, and traders throughout India.

Q: When should I choose rubber sealed versus open bearings for my machinery?

A: Rubber sealed bearings are recommended for environments exposed to dust or moisture, enhancing protection and reducing maintenance. Open bearings suit cleaner, high-speed settings where frequent lubrication is feasible.

Q: What is the operating temperature range for this bearing, and why is it important?

A: The bearing can operate efficiently from -30C to 120C, making it suitable for outdoor agricultural machinery and heated conveyor systems where temperature fluctuations are common.

Q: How is lubrication maintained in this bearing model?

A: Lubrication is provided by grease or oil mist, depending on the application requirements. This ensures smooth movement and prevents premature wear, which is crucial for bearings running at speeds up to 14,000 RPM.

Q: What benefit does the Precision Ground finish provide?

A: A precision ground finish reduces friction, improves rotational accuracy, and extends bearing life, contributing to high efficiency and reliability in critical industrial operations.
